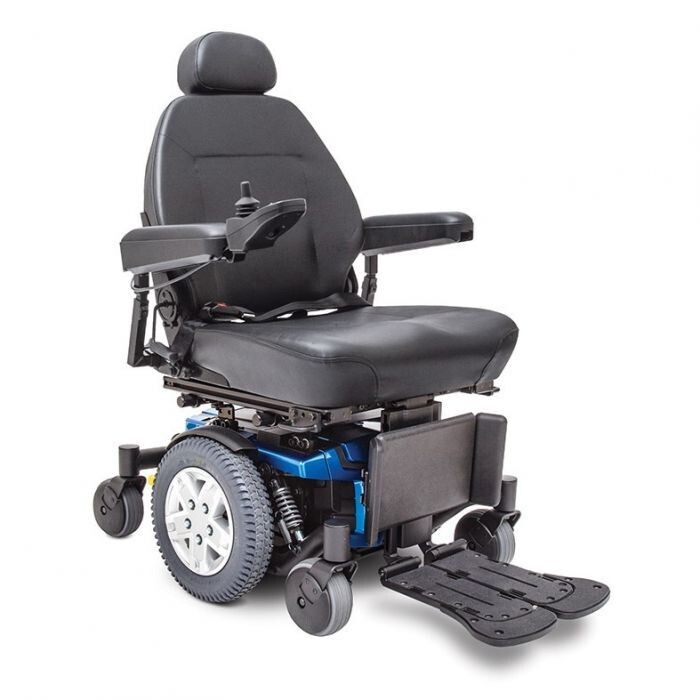

Quantum Q6 Edge HD Power Wheelchair Features :

Up to 75% paid by OHIP for eligible patients.
Fully customized to your needs. Custom orders: 3 to 5 business days. Call now: 416-880-6305

• Mid-Wheel 6® allows six wheels on the ground for maximum stability
• Compatible with TRU-Balance® 3 HD Power Positioning Systems
• Available with Q-Logic 3 Advanced Drive Control System, which offers Bluetooth® access to computer, tablet and phone functions
• 450 lbs. weight capacity
• Low impact OMNI-Casters (nylon, spherical-shaped casters) on front and rear prevent wheel hang-ups
• ATX Suspension (Active-Trac® with extra stability) incorporates front OMNI-Casters and semi-independent rear caster beam for enhanced performance over more varied terrain
• 400 lbs. weight capacity iLevel® option enables up to 10” of seat elevation while at walking speed (up to 3.5 mph).
• Optional iLevel's patented Extra Stability Technology® enhances safety while performing transfers, reach, and numerous other activities of daily living
• Optional LED fender lights (standard with iLevel)
• Available with WC19 crash-test approved occupied transit kit option on Synergy® seating

  Specifications:

  User Weight Capacity	450 lbs
  Top Speed	4.7 mph
  Estimated Range on Full Charge	n/a
  Turning Radius	19.75"
  Ground Clearance	3"
  Overall Dimensions	35.6" (L) x 26.25" (W)
  Seat Dimensions	TRU-Balance® 3 HD Synergy®/Static: W: 20-32" D: 20-28" Power Tilt: W: 20-32" D: 20-25" Lift & Tilt: W: 20-24" D: 20-25"
  Seat To Floor Height	TRU-Balance® 3 HD Synergy®/Static8: 15.875-17.875" Power Tilt8: 18.5-20.5" Lift & Tilt8: 18.5-20.5"
  Front Wheels	6" solid casters
  Rear Wheels	6" solid casters
  Drive Wheels	14" run flat Optional: 14" Pneumatic, 14" Knobby
  Motor	4-Pole 4.7 mph
  Batteries	(2) Group 24
  Battery Charger	8-amp, off-board
  Battery Weight	52 lbs
  Heaviest Piece	143.5 lbs (base only)
  Overall Weight	143.5 lbs (base only)
